Brand Name : | HLD |
Model Number : | SJ-100-120-150-180--200-otehr |
Certification : | CE |
Price : | 25000~100000 dollar/set |
Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability : | 200/set/year |
Delivery Time : | 45 work days |

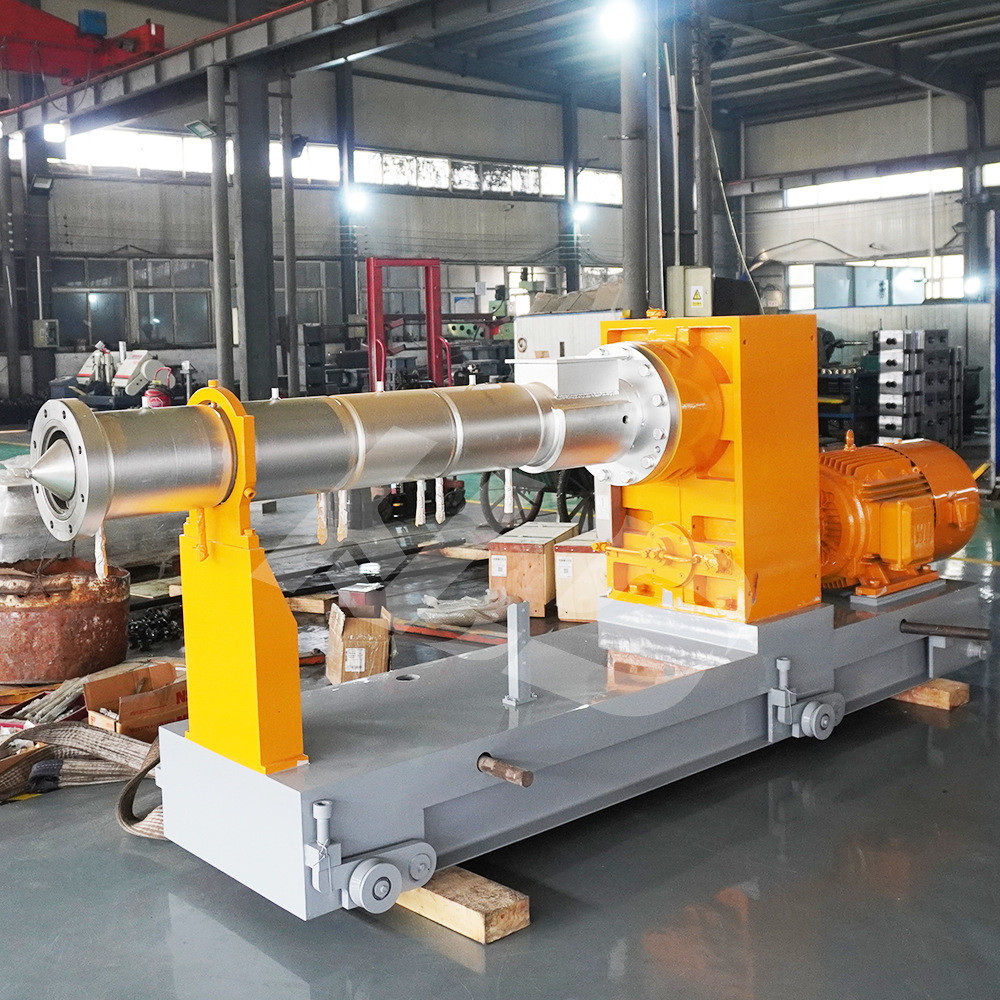

Recycling plastic granulator
The motor and the gearbox are connected by coupling, direct transmission, high transmission efficiency, so that the energy consumption of the equipment is lower and more compact.
The barrel can be cooled by fan or circulating soft water, equipped with imported temperature control system and PID parameter setting function, and the temperature control is more accurate.
Model | Screw Diameter | L/D | Motor Power | Screen Changer | Capacity |
SJ-100 | 100mm | 20-32 | 30-70Kw | Hydraulic | 120-200KG |
SJ-120 | 120mm | 20-32 | 37-45Kw | Hydraulic | 200-300KG |
SJ-150 | 150mm | 20-32 | 55-75Kw | Hydraulic | 250-350KG |
SJ-180 | 180mm | 20-32 | 75-90Kw | Hydraulic | 300-450KG |
SJ-200 | 200mm | 20-32 | 110-160Kw | Hydraulic | 500-800KG |
The single-screw extruder is mainly used in the process of molding extrusion or granulation of products that need to be vented or vacuumed to treat the melt, including the recycling and granulation of polyolefins and engineering plastics, and the direct extrusion of engineering plastics such as pipes, sheets, films and profile products. Styling materials include: PET, PA, PBT, ABS, PC and so on.
FAQ
1:Is it OK to print my logo on extruder machine?
Yes. Please inform us formally before our production
2:Can I have a sample order for extruder?
Yes, we welcome sample order to test and check quality. Mixed
samples are acceptable.
3:How to proceed an order for ?
A: Firstly ,let us know your requirements or application.
Secondly ,We quote according to your requirements or our
suggestions.
Thirdly ,customer confirms the samples and places deposit for
formal order.
Fourthly, We arrange the production.
4: Do you offer guarantee for the products?
Yes, we offer a 1 year warranty on our products after shipment.
5:What other after-sales services do you offer?
During the warranty period, we are responsible for repairing the
equipment free of charge (except for wearing parts and human
factors).
Good prices for wearing parts (e.g. threaded elements)
![]() |
